Subsection 1.4 · Chapter 1

Cosmic MicrowaveBackground

The oldest light we will ever see. About 380,000 years after the Big Bang the Universe cooled to roughly 3000 K, electrons bound to nuclei, and the cosmic fog lifted — photons streamed free. Cosmic expansion has since stretched them a thousandfold into a 2.73 K microwave hiss. Penzias and Wilson stumbled onto it in 1964; COBE, WMAP, and Planck have mapped its faint temperature ripples — the gravitational seeds of every galaxy.

↓ scroll to begin

The Fog Lifts

In the earliest moments of the Universe, photons were trapped in a hot, dense fog of free electrons that scattered light continuously, rendering the cosmos opaque. However, approximately 400,000 years after the Big Bang, the expanding Universe cooled to roughly 3000 K, a threshold low enough for electrons to combine with protons and form neutral hydrogen atoms. This pivotal event, known as recombination, lifted the fog and allowed photons to decouple from matter, finally streaming freely through space.

Stretched to Microwaves

Over the subsequent 14 billion years, the relentless expansion of the Universe has stretched the fabric of space itself, elongating the wavelengths of these ancient photons by a factor of roughly 1,100 through cosmological redshift. Consequently, this primordial radiation has cooled and shifted from energetic light into the low-energy microwave band, permeating the cosmos today as the Cosmic Microwave Background (CMB) radiation with a temperature of approximately 2.73 K, often rounded to 3 K.

STREAMING PHOTON →TRANSPARENT · LIGHT FREE
REFERENCE · WAVELENGTH AT RECOMBINATIONλ = 40 µm (infrared)PHOTON WAVELENGTHINFRARED
scale factor
× 50
CMB temperature
137 K
wavelength
40 µm (infrared)
from 1 (recombination) to 50 of 1100 (today)
recombination · 3000 Khalfway · 1500 Ktoday · 2.73 K
Fig. 1.4.a — Recombination · The Fog Lifts, Photons Stretch. At 380,000 years, the Universe cooled enough for electrons to bind to nuclei. Light decoupled from matter and streamed free. As space has expanded by a factor of 1100 since, those primordial photons have stretched from visible/IR light into microwaves — the CMB we see today at 2.73 K.

Penzias & Wilson, 1964

The definitive confirmation of the Big Bang theory emerged serendipitously in 1964 when Arno Penzias and Robert Wilson, utilizing a 20-foot horn-shaped radio antenna at Bell Labs in New Jersey, detected an inexplicable signal. While attempting to calibrate the instrument for satellite communications, they encountered a persistent, low-level background "hiss" that arrived uniformly from every direction, unwavering regardless of time or season.

After rigorously ruling out terrestrial interference — a process that even involved scrubbing pigeon droppings from the antenna — they consulted Robert Dicke's team at Princeton, who identified the "static" as the elusive CMB. This discovery provided the smoking gun for the Big Bang theory, as the radiation perfectly matched the predicted "fossil remnant" of the Universe's hot, dense origin — now redshifted to about 3 Kelvin — a phenomenon the competing Steady State theory could not explain.

HORN · 20 FT
step 1 · 1964
A 20-foot horn at Bell Labs

Arno Penzias and Robert Wilson, two radio engineers in Holmdel, New Jersey, are calibrating a giant horn-shaped radio antenna for satellite communications. The instrument was designed to bounce signals off the Echo balloon satellite.

Fig. 1.4.b — The 1964 Accident · Penzias & Wilson. The Cosmic Microwave Background was discovered by two engineers who were trying to do something else entirely. Walk through the six steps of the most accidental Nobel Prize in cosmology.

COBE → WMAP → Planck

Following the initial detection of the CMB, astronomers deployed a succession of satellites to map its subtle temperature variations across the celestial sphere. NASA's COBE satellite (1989) pioneered this effort by producing the first full-sky map, confirming the CMB's blackbody spectrum — the specific pattern of light intensity emitted by an object based solely on its temperature — and detecting the minute temperature ripples (anisotropies) essential for structure formation.

This view was radically sharpened by the WMAP mission (2001), which mapped the sky with 30× better resolution and significantly greater sensitivity than its predecessor. Finally, the European Space Agency's Planck mission (2009) brought the early Universe into even sharper focus, improving resolution by another factor of three and sensitivity by a factor of ten. Together, these progressively detailed maps have transformed cosmology into a precision science, confirming a spatially flat Universe dominated by dark energy and dark matter.

  1. COBE1989
    ≈7° resolution
  2. WMAP2001
    ≈14′ resolution (30× COBE)
  3. Planck2009
    ≈5′ resolution (3× WMAP)
PLANCK · 2009ESA's most exquisite all-sky CMB map. From the L2 Lagrange point, Planck scanned the sky every 6 months at 9 frequencies (3 mm to 13 mm) to subtract Milky Way foregrounds.
Fig. 1.4.c — Maps of the Baby Universe · COBE → WMAP → Planck. The same patch of CMB, sampled at three telescope resolutions across three decades. Each colder (blue) or hotter (red) speck is a primordial density fluctuation — a future galaxy cluster or void, seen at the age of 380,000 years.

The Planck mission delivered the most exquisite all-sky map of the CMB to date. This baby picture of the cosmos reveals minute temperature variations of roughly 400 microkelvin (millionth of a Kelvin). These temperature differences signify regions of slightly differing density; specifically, the blue (colder and denser) and red (hotter and less dense) spots track primordial density fluctuations that acted as the cosmic seeds for future growth. Through the relentless influence of gravity, matter eventually coalesced in the denser regions to form the vast web of galaxies and clusters observed today, making the Planck map a direct image of the embryonic structures of our Universe.

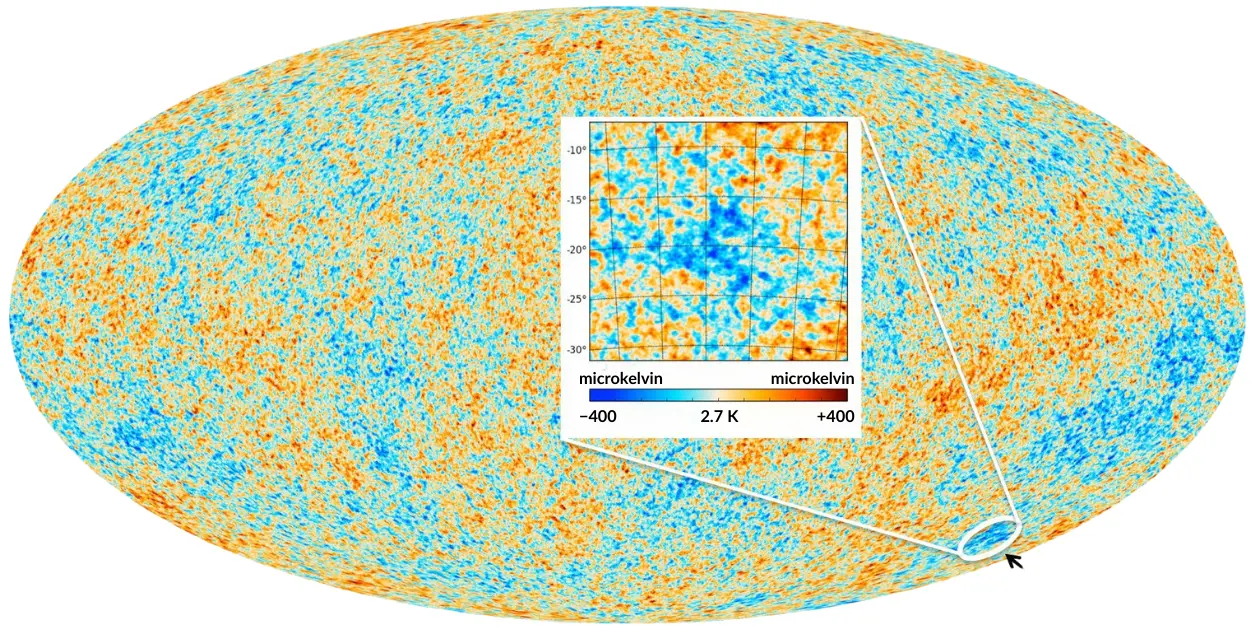

ESA Planck satellite's all-sky map of the Cosmic Microwave Background — temperature fluctuations of about 400 microkelvin on a 2.7 K background. Blue regions are slightly cooler and denser; red regions slightly hotter and less dense.
Fig. 1.4.d — Planck all-sky CMB map. Every point is a photon released 380,000 years after the Big Bang and stretched a thousand-fold during its 13.8-billion-year journey. The tiny temperature ripples — blue cooler, red hotter — are the gravitational seeds of every galaxy, cluster, and cosmic-web filament that followed. Credit · ESA / Planck Collaboration

Planck operated from the L2 Lagrangian point, a gravitationally stable position 1.5 million kilometers from Earth where it could remain permanently shadowed from the Sun. Rather than orbiting Earth, Planck followed our planet around the Sun, scanning the entire sky every six months. To generate the final image, astronomers mathematically excised significant foreground interference — most notably the microwave emissions from the Milky Way Galaxy, which appeared as a bright band in the raw data. By comparing observations at multiple wavelengths (3 mm to 13 mm), scientists successfully subtracted these local signals to unveil the faint, primordial background Universe at its infancy.

The CMB is the wall of light at the edge of what we can see. Every photon arriving today set out 13.8 billion years ago — stretched a thousandfold, cooled to almost absolute zero, and still carrying the imprint of every galaxy yet to come.
